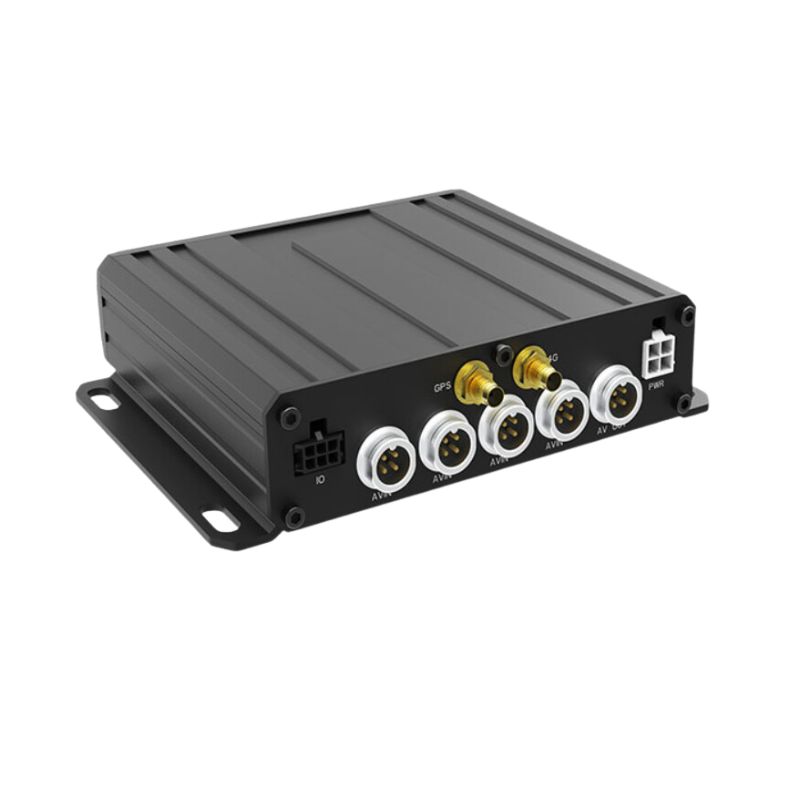

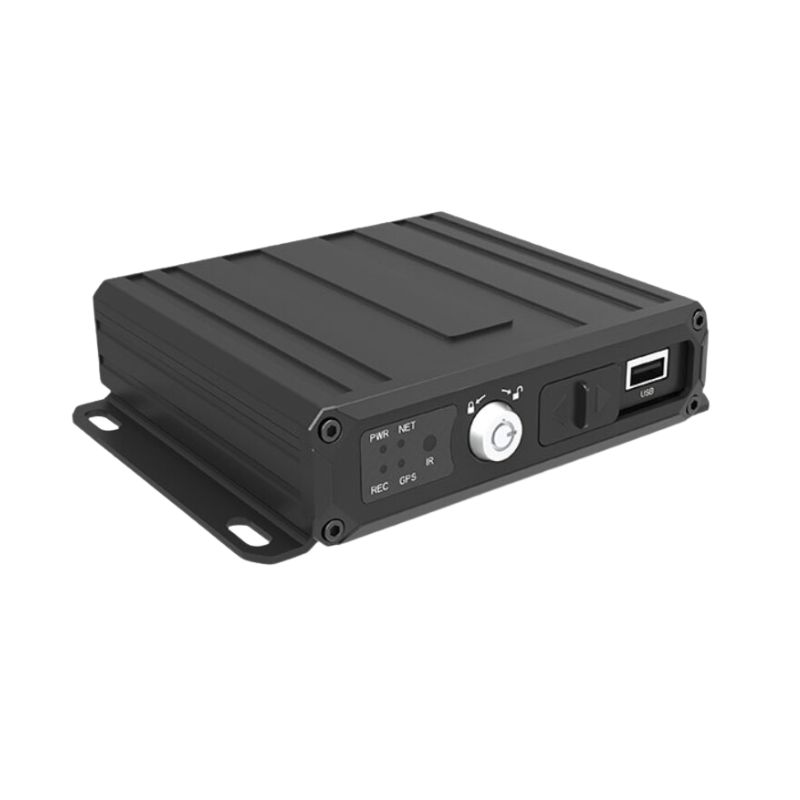

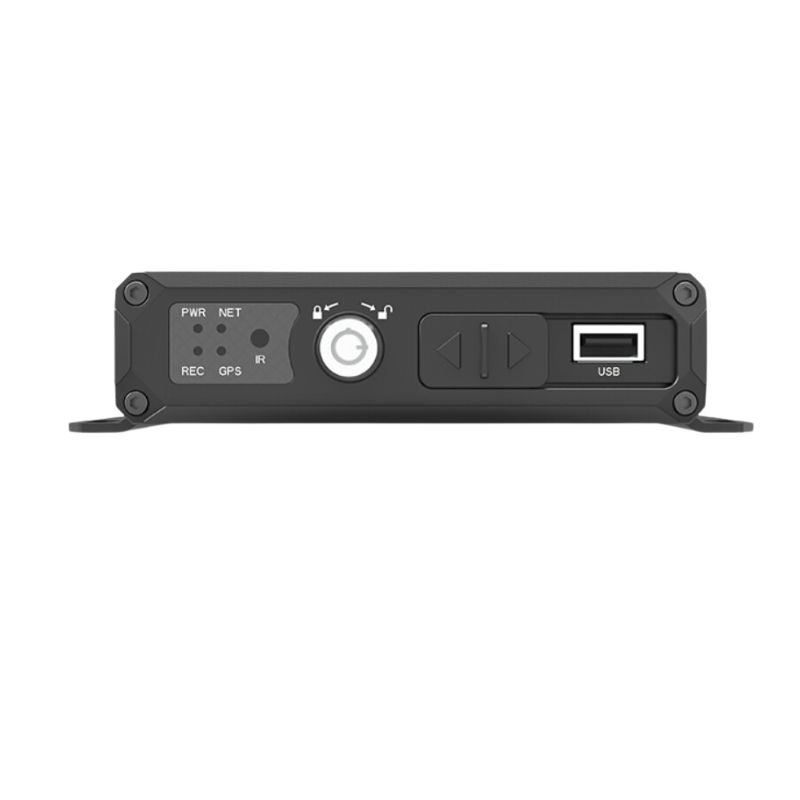

4CH 1080P SD Mobile DVR
Reamol latest single Sd card slot 4CH 1080P SD Mobile DVR, support h.265/264 compression, 1*SD slot, UPS, developed especially for vehicle monitoring and remote video surveillance by 4G and GPS.
As the most cost-effect mobile dvr, this series provide most important features of classic SD mobile dvr. This HD car dvr support 4CH AHD 720p/1080p car camera. 1pcs 128GB sd card can support this mobile dvr record over 3-7days. With the central fleet management and live video surveillance software and ahd 1080p vehicle dvr, users can do central remote monitoring based on alarm linkage, GPS tracking, intelligent dispatch management and playback analysis based on central database. 4CH SD Mobile DVR also support 4G and GPS, all data can send to cloud server.
Features
- 4CH AHD SD MDVR/Black Box
- H.265 video compression save 40% data plans than h.264
- Support 4CH 1080P AHD car cameras
- Compact size and vandal proof
- Industrial-grade design on harsh vehicleenvironment
- 1minute UPS power for continual work
- Support 1pcs SD card up to 256GB for record storage
- 4G/WIFI transmit; multiple grade image quality transmitting option.
- GPS/BD/GLONASS global positioning.
- Powerful CMSV6 including remote preview, playback, broadcast, talk and more.
- Rich interfaces for integration
- 9-36V DC with over-load ,short circuit ,reverse connect protection
Specifications
| Model | SD-4104X Car DVR |
|---|---|
| OS | Linux3.18 |
| Video Input | AHD input:4ch 1080p/15fps, 4ch 720p/30fps； IPC input: 11-4ch, |
| Video Output | 1ch CVBS default, VGA optional(1024×768) |
| OSD | time and date, device ID and GPS, alarm,etc. |
| Compression | H264/H.265 |
| Resolution | AHD: 1080P:30fps；720P: 30fps ；D1:30fps/ IPC: 1080P: 30fps 720P: 30fps |
| Audio | 4ch input, 1ch mic input; 2ch output. 2.0Vp-p, 4.7kΩ |
| Storage | Supporting 2* SD card |
| Alarm Record | Pre-alarm: 0-60min, Delay: 0-30min |
| Integration | RS232, RS485 (extension) |
| Network | Built-in 4G/3G, WIFI;1*RJ45(extended) |
| GPS | Built-in, Positioning, speed detection, time synchronization |
| Power Supply | 9-36V, ACC control |
| Output Voltage | +12V@1A; +5V@1A |
| Consumption | 25w max |
| Temperature | -20℃ ~ +70℃ |
| Humidity | 8% to 90% |
| Size | 324.6x238x116 mm. |
| Weight | Net: 1.2KG |
