Model: BPC-R2D

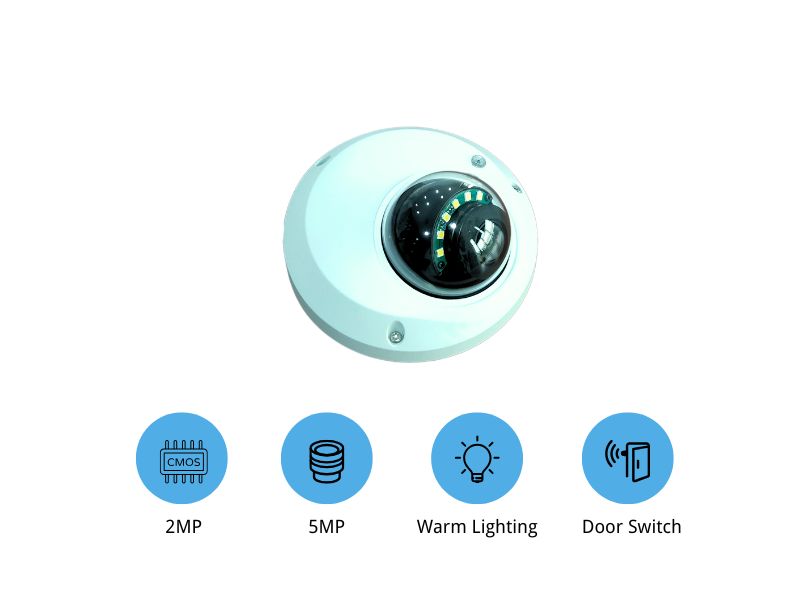

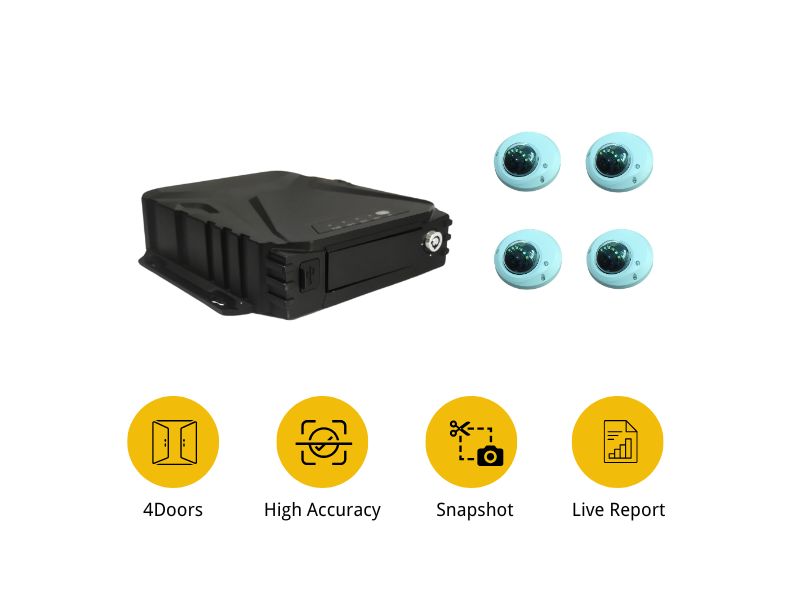

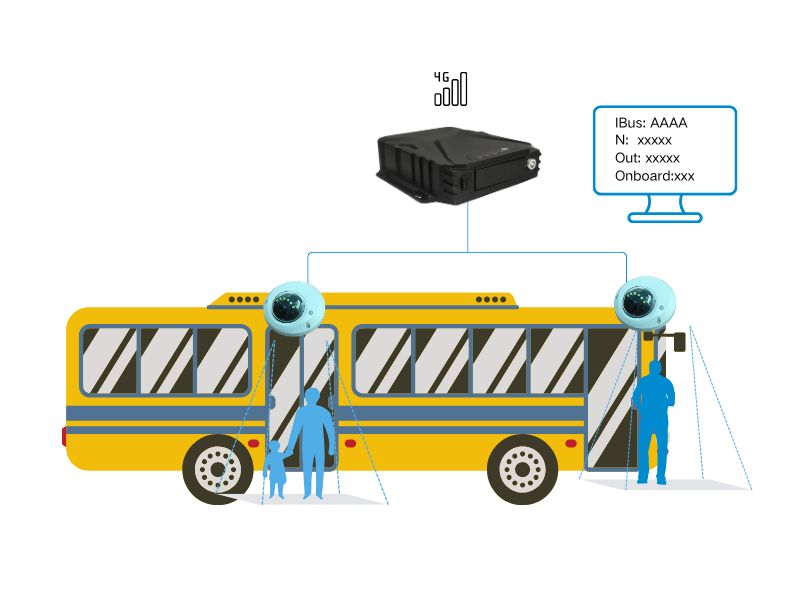

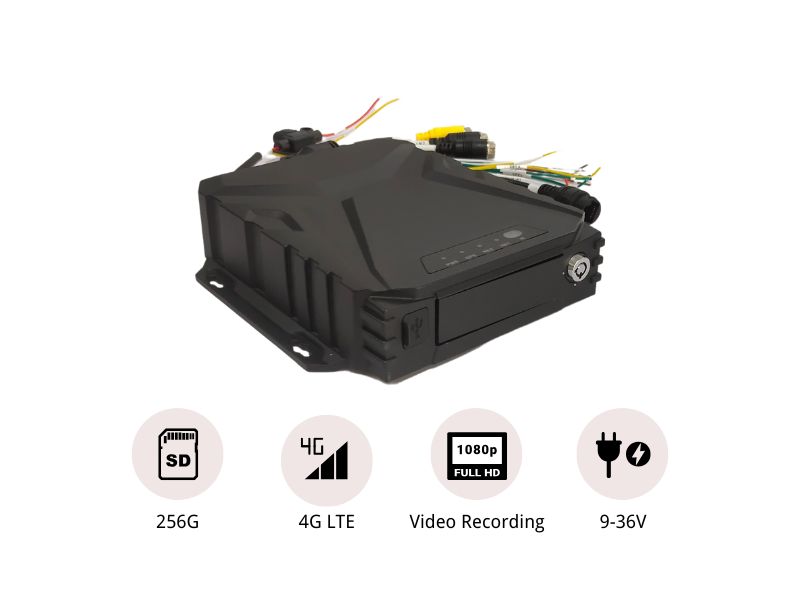

New cost effective 2D bus people counting system is a cutting-edge product that adopt Rockchip AI CPU RV-1126 processor with customized 2MP AHD dome cameras. As a AI mobile DVR, it brings high people counting accuracy for 2 bus doors and 4CH 1080P video recording. Compared with Reamol 3D people counting solutions, it can save 40% cost than other similiar people counter.

The AI mobile dvr system also support 4G, GPS tracking, live surveillance, fleet management, door sensor control, alarm connection and other functions.

Features

• AI Chips RK1126 with 2.0 TOPS NPU
• 1GB DDR+8GB EMMC
• Industrial grade design with dedicated onboard interfaces
• Supports 4CH 2MP AHD cameras, max 1080P@60fps
• Support 2pcs 2D people counting cameras for 2doors entry and exit passengers.
• Supports 4 alarm inputs
• 1 SD card slot up to 512GB, storing video and counting data for ≥ 15 days
• ESupports 4G all network communication and can be compatible with 2G/3G downwards
• Support for GPS positioning module
• Supports 1 channel CVBS video output
• Supports NTP and has automatic timing function
• Supports USB 2.0 extension functionality
• Support Station recognition by GPS
• Supports 1 RS232 serial port, 1 RS485 serial port, and 1 can port
• Support local and remote operation and maintenance upgrade configuration functions
• Support data record storage and breakpoint transmission
• 8V~36V wide voltage design, suitable for various vehicle models
• Supports 1PCS 12V/0.5A power output, capable of supplying power to peripheral devices

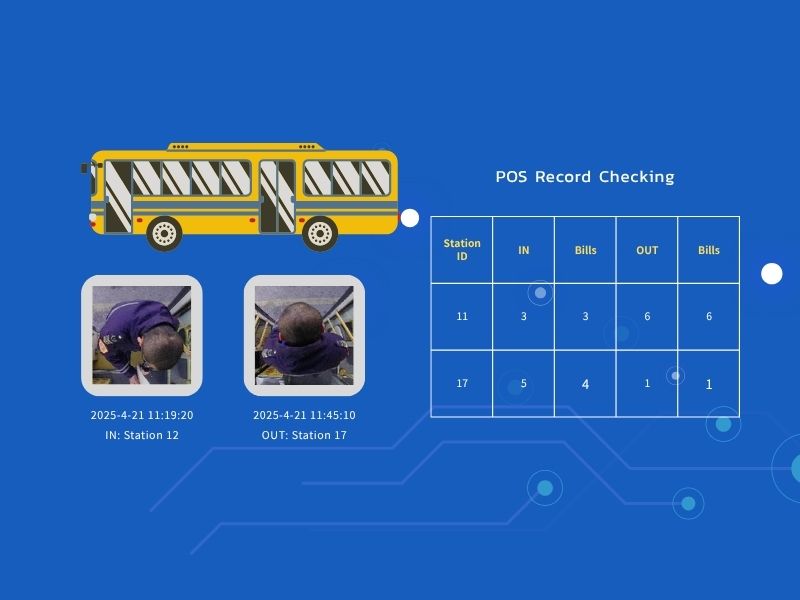

Reamol AI Mobile DVR support OD(origin station and destination station snapshot and recogntion) functions for bus section fares. The unique feature can capture every passengers image as record with date &time& gps data&station id, bus directors can easily trust the counting accuracy with every passengers image.

Every passenger will be snapshot one time only when enter the bus, same as exit the bus. The AI CPU can auto compare these snapshoted images automatically to help bus company to compare the correct bus fare with pos system.
