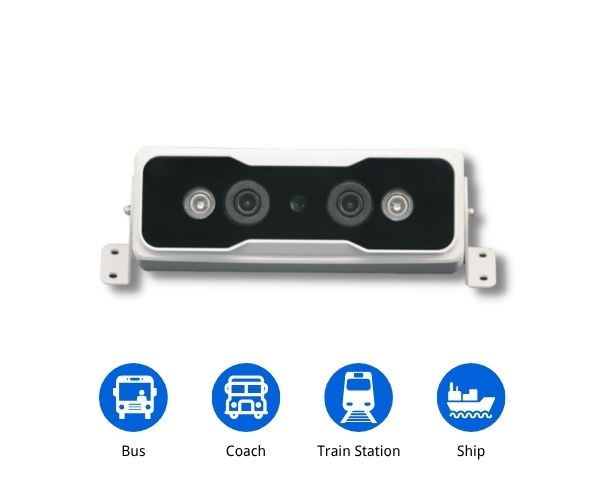

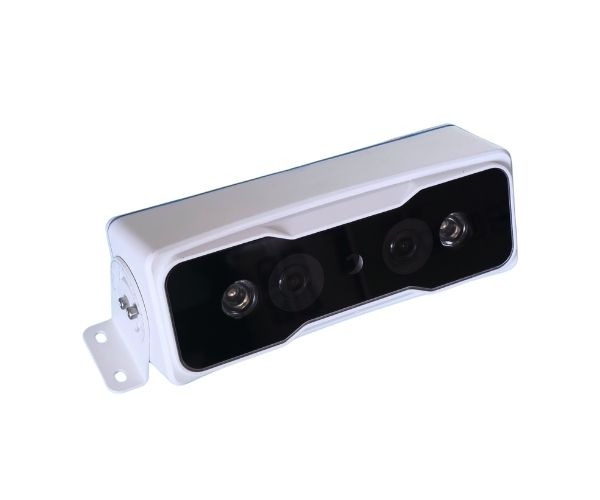

3D Bus Passenger Counter

Model: BPC-T3

BPC-T3 the latest quad-core bus people counter system is designed for passenger bus to obtain real-time and high accuracy . It adopts 1.4Ghz quad core CPU with more powerful features.

One unit can work for any bus door in the world, from short mini bus, city bus, coach, school bus to BRT and stations. With IPAS 3.0 platform, bus fleet directors can easily learn hot station and cold station any hour any day. Then they can optimize their bus routes to reduce cost and increase load rate.

Advantages

High Accuracy

98% High accuracy head and shoulder people counting for any bus by 3D binocular algorithm

1-6Doors

The all-in-one 3D people counting sensor support max 6doors bus or BRT with 4G routers

Nightvision

The 3D counter with reliable LED lighting for darkness. So it can keep high accuracy in the night.

IPAS Platform

IPAS 3.0 platform can collect all counting data with rich analysis charts & reports automatically

Backdoor bus people counting camera

Features

  • 98% countingaccuracy
  • All-winner T3 Quad Core CPU with 1.4Ghz,
  • Two way in and out real time counting
  • Camera Height: 2.5-3.5m, Detecting width: 1.8-3m
  • Max 3meterdetection width for most of entrances
  • Support 1pcs 3D camera for 2nddoor visitor counting(need BC-01)
  • Toaloccupancy management for store and malls
  • Security occupancy control for lift and safe entrance (overload mode)
  • Support door sensor switch to control people counting
  • RS-485, ethernet, DC connector
  • -20℃ to 70℃
  • IP67 Waterproof for outdoor counting
  • 270degree adjustable bracket
  • 12/24V DC input, 5A max.

Specifications

Model: BPC-T3 Bus Visitor Counter
OS: Linux
Direction: IN/OUT Bi-direction people counter
Algorithm: 3D Binocular Visual Technology
CPU: QuadCore CPU, ARMV9,1.4Ghz
Lens: 2.8mm default, 4.0mm for children detection
Resolution: 704*576
Illumination: 0.001Lux
Frame Rate: 25fps
Detection Range： Height: 1.85-2.3m, Width:0.7-1.2m
Children Filter: Tall <1.2m
Filter: Children, cart, bag, hat, pat, hair and glasses
Network: 1pcs RJ-45
Power： 9-36V DC
Temperature： -40℃ to 70℃
Size/Weight： 195*55*60mm/0.45Kg
IO Input 2PCS for door sensor
RS485 1pair
ACC Power delay and reset counting result
Video Output 1CH Round 4PIN aviation connector for MDVR, 1CH for special camera

bus passenger counter size

Integration

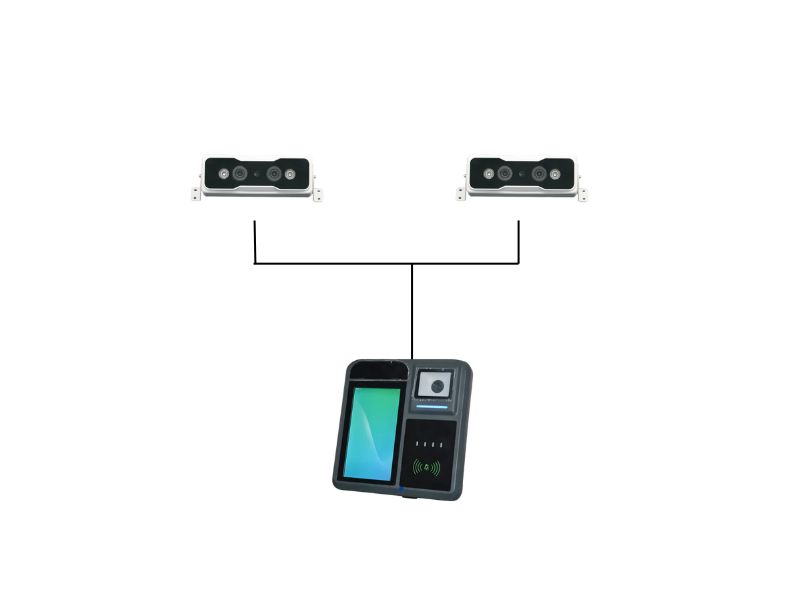

All-in-one video people counter offer TCP/IP and RS-485/232 connection for bus system integration

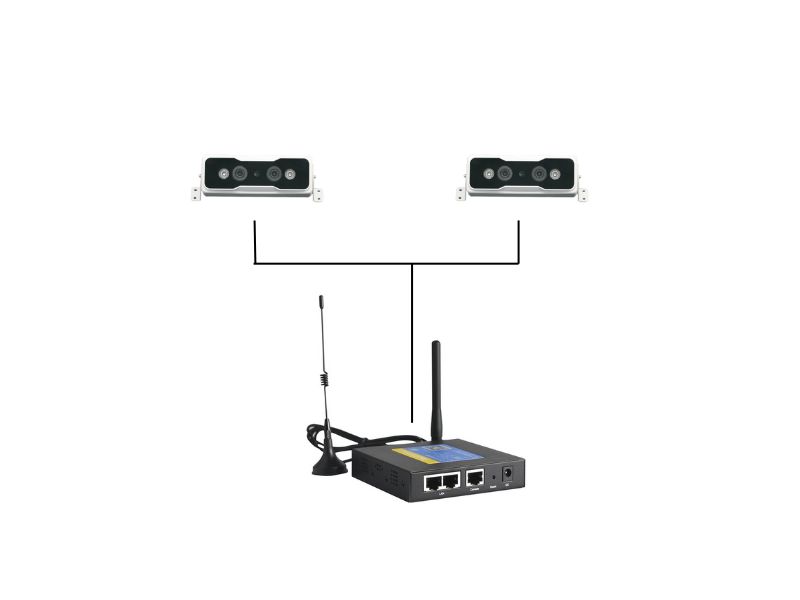

people counter integration with 4G router

Bus Route Optimization

Our IPAS 3.0 platform is a powerful tool for bus companies to analyze bus passenger traffic data. It helps optimize routes, schedules, and fleet usage by providing accurate passenger flow insights. With this data, companies can identify peak hours, high-demand stops, and underused services—leading to more efficient operations and reduced costs. It also improves passenger experience through better planning and reduced overcrowding. Ultimately, data-driven decisions enable smarter resource allocation and support long-term growth and sustainability.
