AI camera people counting camera footfall counter

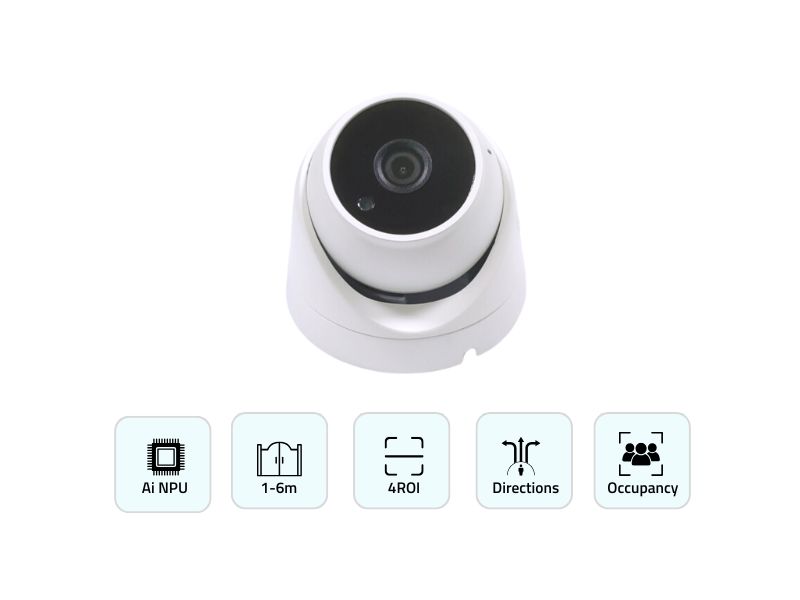

People Counting AI Camera

Unlock the potential of intelligent people counting with Reamol advanced AI Camera for your business with Google machine learning technolgy. Equipped with the powerful RV1106 AI chipset, this AI camera is designed for high precision and performance for your footfall analysis.

Experience real-time IN-and-OUT head counting with a 97% accuracy rate, ensuring reliable footfall data for any business entrance. This ai camera also provide fast integration by RJ45 and RS485 for your devices and platform. Now you can save over 40% cost than before with powerful people counter.

Effective Management

Footfall Traffic

AI traffic counter camera can count entering and leaving people easily at any big area in park, shopping mall, chains, super market, library, stations, airport, factory easily. So managers can adjust their operation.

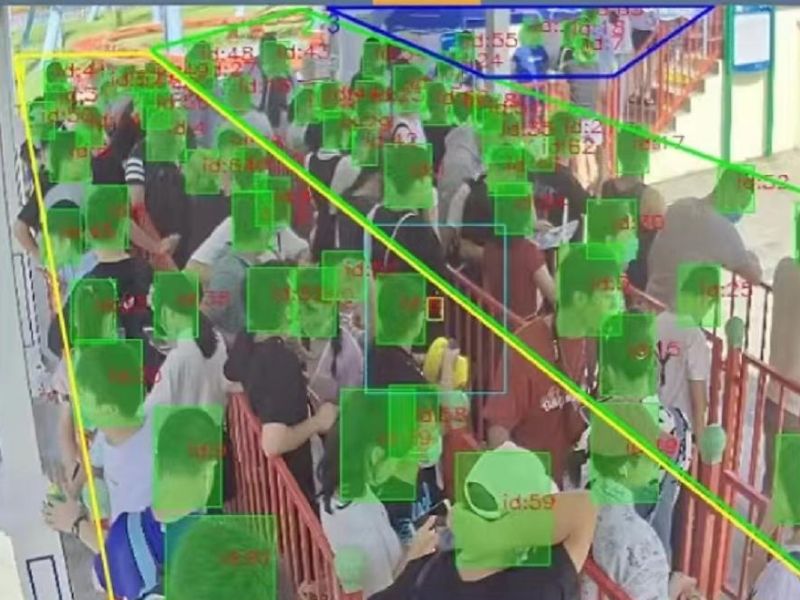

Queue Management

No customers has patience for slow queue when they want to pay or changing product. Many customers will drop the deal directly if they feel too long to wait. Focus on queue time and length will kill

Promption Traffic

AI traffic counter camera can count customers which enter the promption areas or advertising position, so managers can clearly understand their advertising performance and improve their marketing

Unique Advantages

Save 50%

1PCS AI traffic counter camera will replace max 2pcs binocular people counter and save 50% cost on hardware

Free Placment

Reamol AI camera works as a standard IP cameras. The only requirement is to see body or head clearly in image.

4ROI

Users can define 4 customerized areas and 4 IN/OUT directions in Reamol AI camera to count visitors indepently.

1080P

This AI IP camera can provide 1080P full HD video recording via NVR, with  Sony IMX 307 HDR sensor

AI Chips

RK1106 AI chips  with 0.5Tops counting NPU. Max support 20 people in 1 frame of image.

Built-in Report

The AI cameras has built-in database and report grids with years people counting data analysis

Features

  • AI ChipsRK1106 with 0.5Tops NPU
  • 256MDDR3+8GB EMMC
  • Head counting, in and out counting, queue counting
  • 8mm/3.6mm/6mm/8mm/12mm lens optional
  • 2MP IPcamera 1080P@30fps
  • Supportentry and exit passengers.
  • Supports 4 ROI & direction counting for any special entrance
  • Time zone and NTP server
  • Support ONVIF for other NVR
  • Built-in datgabase to save basic counting data to analysis locally
  • Support TCP-IP/HTTP/RS485 protocol integration
  • 12V wide voltage design

Specifications

Image Sensor  2MP CMOS NVP2441+ IMX307LQD
Signal System PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens 3.6mm Full Glass Lens
Housing Metal vandal proof
Day & Night ICR
Angle Adjustment Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Synchronization Internal synchronization
Video Frame Rate 1080P@25fps/720p@25fps
HD Video Output Round 4PIN Aviation Connector
S/N Ratio ＞62dB
Operating Conditions -20 °C – 45 °C (-4 °F – 113 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%, 1amp
Power Consumption Max. 2W
