3D People Counter
Unlock the potential of intelligent people counting with Reamol advanced AI Camera for your business with Google machine learning technolgy. Equipped with the powerful RV1106 AI chipset, this AI camera is designed for high precision and performance for your footfall analysis.
Experience real-time IN-and-OUT head counting with a 97% accuracy rate, ensuring reliable footfall data for any business entrance. This ai camera also provide fast integration by RJ45 and RS485 for your devices and platform. Now you can save over 40% cost than before with powerful people counter.
Counting Features
3D Head Counting
Reamol 3D video people counter can count entering and leaving people easily at any entrance without limit on height and width, , such as park, shopping mall, chains, super market, library, stations, airport, factory easily.

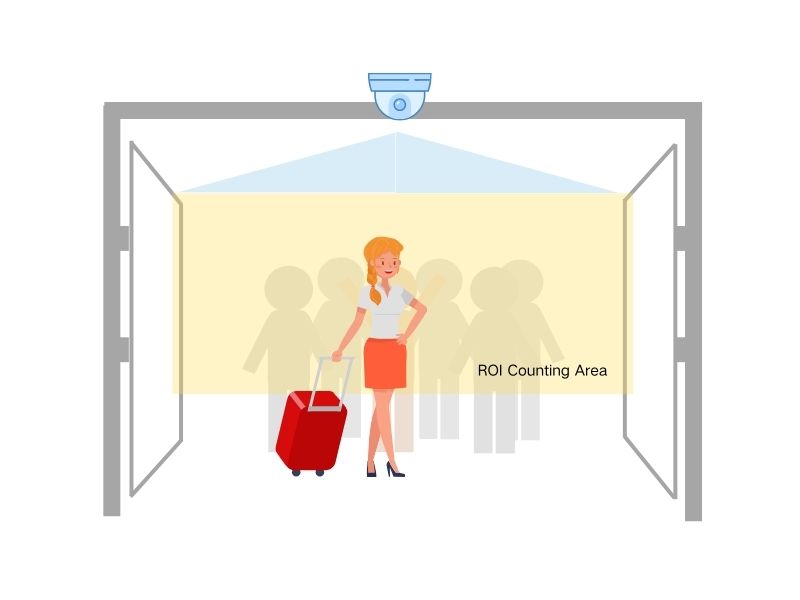

The people counter should be verticlely placed to monitor floor and heads to get best accuracy. Surely it also support any angle if you need adjust the cameras.


Occupancy Control
No customers has patience for slow queue when they want to pay or changing product. So many customers will drop the deal directly if they feel too long to wait. The queue management is very important for famous tourist spots and amusement parks.
Promotion and hot area monitoring is important for retail stores and super market, This traffic counter camera can count customers which enter the promption areas or advertising position, so managers can clearly understand their advertising performance and improve their marketing.
Unique Advantages
- Dual core M2M DSP
- 256MDDR3+1GB EMMC
- Head counting, in and out counting
- 2.8mm/3.6mm/6mm/8mm/12mm lens optional
- 700TVL CCD
- Supportentry and exit passengers.
- Time zone and NTP server
- Built-in datgabase to save basic counting data to analysis locally
- Support TCP-IP/HTTP/RS485 protocol integration
- 12V wide voltage design
Image Sensor | Sony 700TVL CCD |
Signal System | PAL/NTSC |
Effective Pixels | 960(H)*700(V) |
Min. illumination | 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30)s to 1/50,000s |
Lens | 3.6mm Full Glass Lens |
Housing | Metal vandal proof |
Day & Night | ICR |
Angle Adjustment | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
Synchronization | Internal synchronization |
Video Frame Rate | 1080P@25fps/720p@25fps |
HD Video Output | Round 4PIN Aviation Connector |
S/N Ratio | >62dB |
Operating Conditions | -20 °C – 45 °C (-4 °F – 113 °F), Humidity 90% or less (non-condensing) |
Power Supply | 12 VDC±15%, 1amp |
Power Consumption | Max. 2W |
